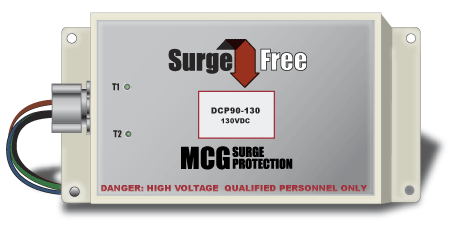

Model: DCP-90

The DCP-90 is designed to protect DC powered equipment, such as inverters and charge controllers used in photovoltaic systems,
from damage caused by lightning. It utilizes high energy 40kA metal oxide varistors and specialized fuses optimized to conduct transient current without opening. The unit is dual redundant and has status indicators on the front panel. Its small size makes it suitable for use in tight cabinets. Rated at 160kA, the unit protects all modes. The DCP-90 is available in various operating voltages so it can be customized to your application.



Features:

  • Formidable surge handling capability: up to 160kA.

  • Front panel LEDs for status indication.

  • Fast clamp response - under 5 nanoseconds.

  • Easy installation - 30 minutes or less.

  • Connection cable included.

  • Protects even in the event of a power outage.

  • All modes protected: + to -, + to Gnd, - to Gnd.

  • Low profile enclosure.

  • DC protection up to 600V applications.
